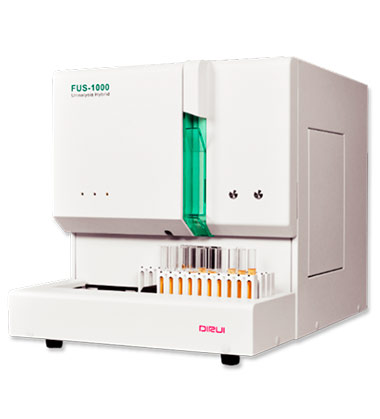

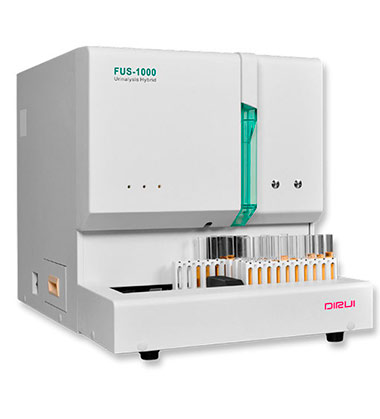

FUS1000 Hybrid Urinalysis Analyzer – Complete urinary diagnostics in a compact format
Powerful, precise and automated, in the smallest possible footprint
The FUS1000 is the world’s smallest hybrid urinalysis system, combining physical, chemical and morphological imaging analysis in a single instrument. All in a compact design just 70 cm wide, with fully automatic operation and advanced connectivity.
With a capacity of up to 60 tests per hour, the FUS-1000 is ideal for laboratories, hospitals and diagnostic centers looking for precision, automation and artificial intelligence, even when space is limited.
Why use the FUS-3000Plus hybrid analyzer?
Triple analysis integrated in a single compact instrument
– Physical analysis, 14 chemical parameters and 12 formative elements
– Complete results, no need for manual microscopy
Advanced imaging and flow cytometry technology
– Up to 950 images per sample (800×600 px)
– Cell sorting by artificial intelligence
– Optional storage and retrieval trays
Compact, versatile and easy to use
– Only 70 cm wide and 60 kg
– Simple interface and click-to-activate functions
– Integrated barcode scanner and bi-directional connection to LIS/HIS
Complete and secure system
– Integrated quality control: reagents, calibrators, controls
– Image viewing and review
– Capacity for up to 50 samples
Technical specifications
Sample volume:
3.0 mL (hybrid); 2.2 mL (chemical). Aspiration: 2.2 mL / 0.4 mL
Performance:
Connectivity:
RS-232, serial, network; bi-directional LIS/HIS; internal and optional scanner
Working temperature:
10-30ºC
Clinical application of the FUS-1000 analyzer
– Clinical laboratories with limited space: triple analysis in a single compact device.
– Hospital emergencies: rapid acquisition of critical urinary information without the need for microscopy.
– Preventive diagnostics and primary care: helps to detect urinary tract infections, hematuria, kidney damage or metabolic disorders with great efficiency.
Performance and reliability in urinalysis for clinical laboratories
At Tecil, we focus on compact and powerful solutions to improve our customers’ diagnostic capabilities.
The FUS-1000 is the ideal tool for those seeking automation, reliability and space savings without sacrificing advanced features.
Ask for more information and one of our specialists will advise you without obligation.
Guaranteed quality
All our laboratory equipment and materials for hospitals and laboratories comply with current regulations and the highest quality standards, backed by ISO 9001 certification.
